SSR1300 Rotary Scanner/Controller System
The SSR1300 Scan Motor/Controller is designed to provide precise rotation of scan mirrors operating in the range of 1000RPM to 5000RPM. Typical applications include laser leveling systems, laser based position measurement systems, line scan generation, and any optical system requiring precision constant velocity scanning.
Download Data Sheet (PDF)
Features

> Excellent speed stability: Speed jitter <0.05% (500PPM), standard deviation of 100 revolutions.
> Low cost: Cost effective solution for many scanning applications (Optic/payload specified by customer)..
> Speed range: 1000RPM to 5000RPM, bi-directional rotation.
> Rugged mechanical design & precision, long life ball bearings.
> Phase lock-loop speed control system, no long term speed error.
> Brushless DC motor with Hall sensor feedback.
> Power requirement: 10VDC to 24VDC, 20W max power consumption.
> Accommodates payloads up to 4oz (110g) and 2” (50mm) diameter.
> -25ºC to +75ºC operating temperature range.
> Custom configurations available to accommodate mounting, payload (optic), and control requirements.

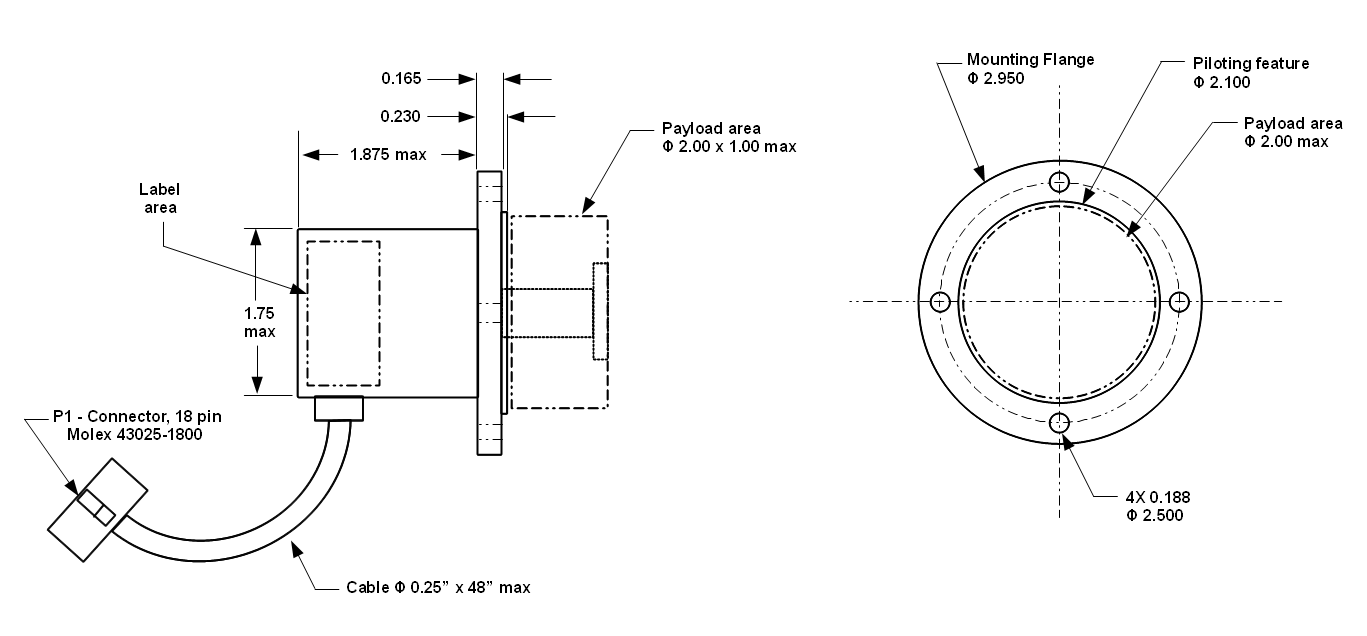

Download Drawing (PDF)
SSR1300 Shown with optional scan mirror.
